Intensive Cooking & Odor Treatment
In addition to its high-performance filtration and self-cleaning system, the PERFORMAIR MIST hood protects the ventilation system from sparks and hot fumes made by charcoal cooking, thus preventing fire hazards.
The mist system works by intermittently spraying water to cool the hood and its filters and the hot fumes.
This intermittent misting is made possible by the very nature of our PERFORMAIR clay ball filter, a perfect spark arrestor, enabling water savings of up to 90% compared with a traditional water mist hood with a continuous spraying of water.
This feature can be used in combination with an On-Demand Ventilation System, saving even more water.

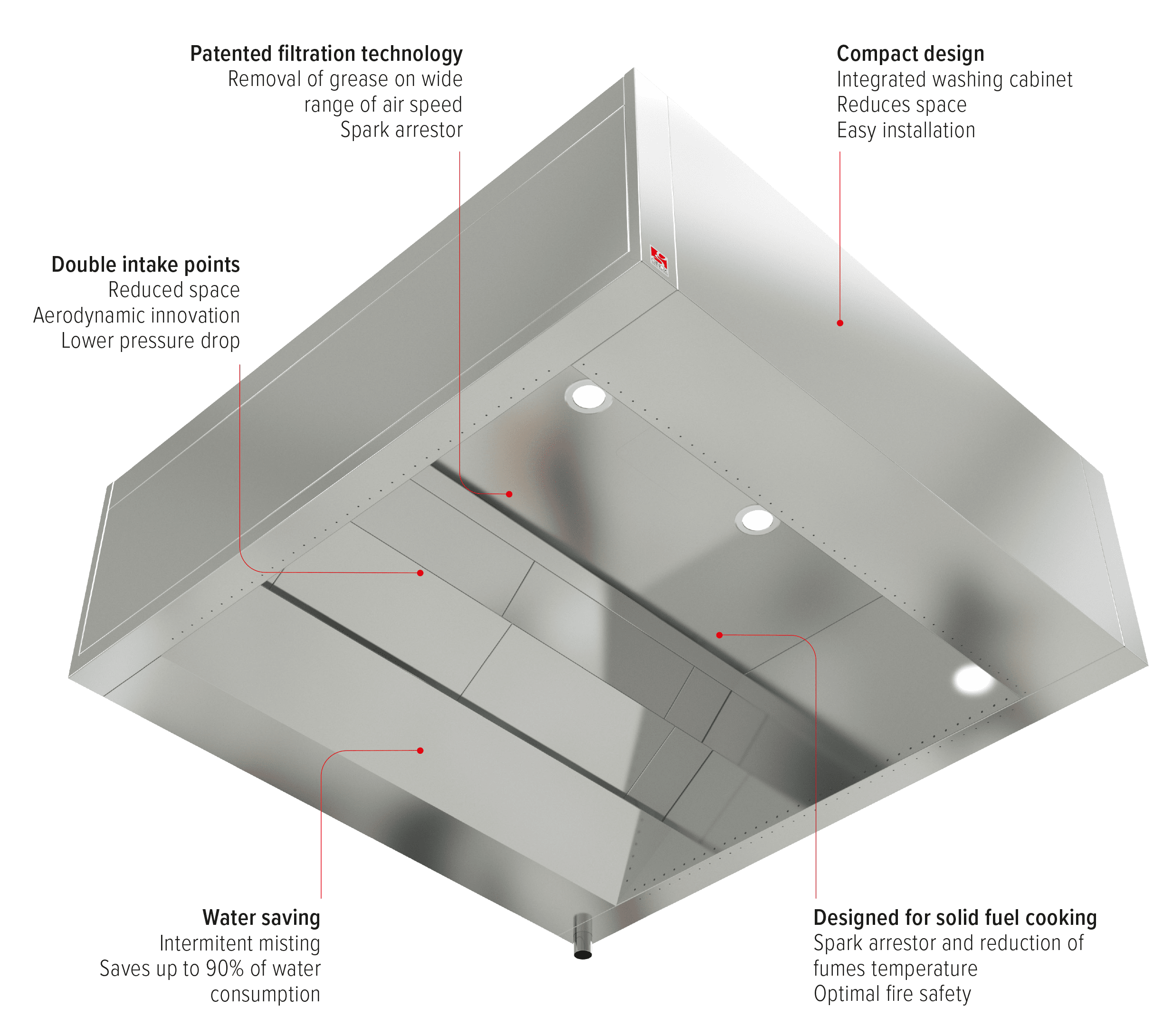

Advantages
ADAPTED FOR SOLID FUEL COOKING
OPTIMAL FIRE SAFETY
WATER SAVING
HIGH-PERFORMANCE FILTRATION
AUTOMATIC AND BIOTECHNOLOGICAL CLEANING
ENVIRONMENTALLY FRIENDLY
PREMIUM AND MODULAR DESIGN
Technical Specifications
|
Material |
Stainless steel, 1.4301, 1.0 mm, brushed |
|
Control cabinet |
Integrated |
|
Electrical connection |
1N 230 VAC / 50 Hz / 10 A |
|
Water connection – cold |
DN25, 1”, max flow 28 L/min, min 5°C, max 25°C |
|
Water connection – hot |
DN25, 1”, max flow 28 L/min, min 50°C, max 80°C |
|
Water pressure |
3 bar dynamic |
|
Water mist consumption (L/min) |
from 1.6 to 2,8 L/min during cooking |
|
Lighting |
LED spot – 3000K or 4000K |
Other Options
Lighting
The LED lighting installed in Ginox Swiss Kitchen ventilation hoods ensures ideal and comfortable working conditions for users…
Ecoazur©
The ecoAzur® technology integrated by Ginox Swiss Kitchen allows the hoods to contribute to substantial energy savings thanks to a cooking activity detection system composed of optical sensors
Pulsair
The PulsAir induction technology integrated in the Ginox Swiss Kitchen ventilation hoods reduces the exhaust flow rate by up to 20% while guaranteeing the efficiency of the system.
Laminair
The LED lighting installed in Ginox Swiss Kitchen ventilation hoods ensures ideal and comfortable working conditions for users.
